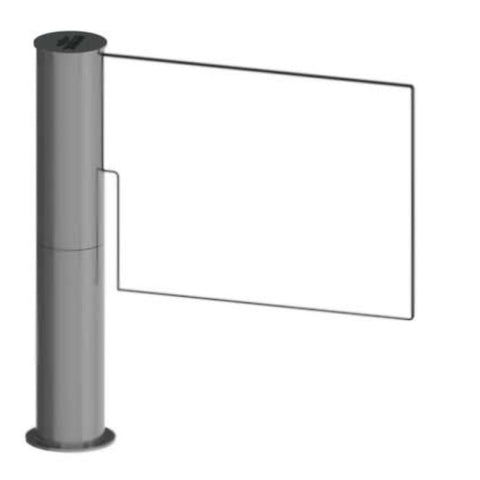

TTS 212: Swing Gates

TTS 212: Swing Gates

  • $5,990.00


TTS 212 As an option, ”STOP,” “PASS” and “BLOCKED” signs can be etched onto the plexiglass or glass wings. Motorized swing gate operates with 110 Vac. Internal voltage is 12 Vdc. To open the swing gate, it is sufficient to use any access control unit that offers a dry contact terminal.

The turnstile is designed to operate reliably in internal and external applications. However, for very dusty or humid environments, it can be delivered with appropriate optional features if the respective specifications are provided at the time of order.

DATA SHEET

DRAWINGS

Features & Benefits



The turnstile is designed to operate reliably in internal and external applications. However, for very dusty or humid environments, it can be delivered with appropriate optional features if the respective specifications are provided at the time of order.

TANSA turnstiles allow free exit out of the site or the building in case of a power failure, a feature mandated by law. If the customer wants the turnstiles remain locked during such an emergency, such functionality can be provided as an option, contingent upon the written request of the client. However, once set at the factory, the system then cannot be switched back to the emergency-exit state by the client and it remains locked during all subsequent power failures.

OPERATION

Configurable in both directions, providing both entry and exit with manual push.

BODY AISI

304 certified stainless steel (EN 10082-2 Grade 1G/2G).

HEAD and ARMS

Plexiglass and stainless steel. Option of 10 mm thick tampered glass.

FEATURES

Bi-directional access information monitored by electronic microprocessor.

Adjustable opening and closing intervals, configured via electronic card.

MECHANISM

Monoblock construction mechanism with control cams that are                                     treated with AISI 304 gradestainless steel CNC against rust, ware-out, expansion, and contraction.

POWER SUPPLY

110 Vac 60 Hz Switch mode supply. Max 25 Watts operational power. Max 12/24 Vdc internal voltage.

ENVIRONMENTAL SPECS

14 / 122 F° /(-10 / +50 C° ) temperature range.

Can operate even in -40 F° (-40 C°) with thermostat-equipped optional external heater. Rated for Max 95% humidity.

EMERGENCY MODE

In power failures or when an emergency signal is issued,

the turnstile arms assume a position to allow free access.
