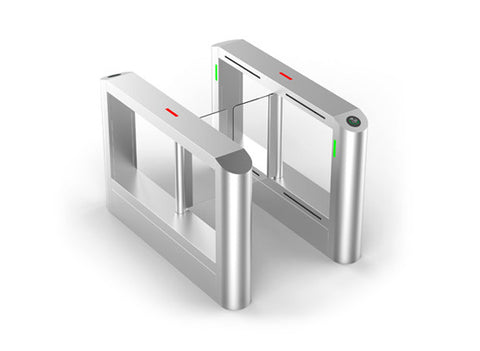

TPW-322DS: Swing Gate Turnstile
▌Product Description and Features:
- Suitable for commercial buildings, subways, airports, customs, exhibition halls, government buildings, financial institutions, clubs and other high-end indoor applications.
- The intelligent swing gate turnstile TPW-322DS is transparent and bright, simple and elegant; the housing made of stainless steel is durable.
- The gates are driven by brushless DC motors and a precise positioning encoder, ensuring the swing gate can rotate quickly, accurately and quietly, with low-power consumption, energy conservation, and environmental protection.
- By using more than 10 pairs of high-performance infrared sensors and exact algorithms, the gate accurately detects the pedestrian’s passing position to sense anti-tailgating, reversing, and allow safe passage.
- The wider lane is optional for carrying luggage and wheelchair access.
- Equipped with the dry contact signal input interface, RS485/RS232 interface, TCP/IP interface (optional), compatible with all kinds of access controllers.
▌Technical Parameter:
| Machinery Mechanism | MTHTTM Lossless mechanism |
| Housing Dimension | 1600×200×990mm |
| Swing gate material | Organic glass (default); tempered glass (optional) |
| Housing Material | 304-grade stainless steel |
| Power and Voltage | 100-240VAC, 50/60HZ |
| Operation Voltage | DC24V |
| Controlling Method of Motor | DSP |
| Communication Interface | RS485 / RS232 (default); TCP/IP (optional) |
| Humidity | 0~95% (non-condensation) |
| Positioning Method | Encoder |
| Working Environment | Indoors |
| Control Input / Output | 8 channels dry contact signal input / 12 channels relay control output |
▌Custom-made Feature:
|
|
|
|
|
|
▌Application:
● Commercial buildings
● Subways
● Airports
● Customs
● Exhibition halls
● Government buildings
● Financial institutions
● Clubs
