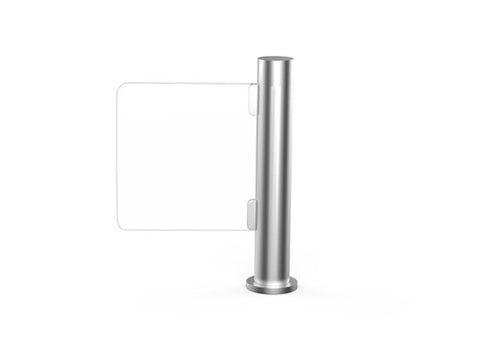

TPW-322AG: Swing Gate Turnstile
TPW-322AG: Swing Gate Turnstile
Integral rotation design, larger glass barrier, wider passageway, and smoother running.
▌All-around Personal Safety Protection
The half height turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power failure, etc.
Mechanical anti-clamping functions for protection.
The gate can be pushed slowly when a sudden impact force is applied beyond the safety range so as to protect the machine and the pedestrian effectively.
All electric modules are designed to operate under the safety voltage of 24V and configured with the residual current protective device to effectively avoid electric shocks.
▌Intelligent & Advanced Passageway Security Concept
Closed loop feedback control system can monitor the gate’s movement intelligently, and sensitively detect the behaviors that threaten the passageway safety, such as illegal hitting, reverse passing, and give out alarms through sound, light, etc.
The turnstile can be also linked with other security systems.
▌Strong & Stable Control Core
High-quality DC brushless motor is configured and advanced servo control system is carried to truly achieve precise control, stable performance and maintenance-free.
Lossless mechanism structure based on German technology is adopted to ensure a long lifespan.
▌Detailed Product Description
Working Environment: Indoors Dimension
Figure: 1100×Φ168(mm)
Lane Width: 700 Mm
Housing Material: 304 Grade Stainless Steel
Surface Treatment: Brushed Finish
Swing Gate Material: Organic Glass
▌Product Parameters:
Driving motor: DC brushless motor
Normal passing: 30 ~ 45 people / min(according to the condition of pedestrians)
Evacuate passing: 60 people/min(according to the condition of pedestrians)
Power supply: AC100-240V,50/60Hz
Rated power: 35W
Operation voltage: DC 24V
The turning angle of swing gate: ±90°
Control input/output: 6 channels relay control output/ 8-channel dry contact signal input
Communication interface: RS485 / RS232
▌Basic Function:
Self-recovery function: The swing gates do not return to the hindered zero position because of something abnormal. And the swing gate will automatically recover to the hindered zero position when it is over the set time.
Automatic reset function: The swing gate will return to the hindered zero position automatically when the passing is finished, stable and no shaking.
Passing mode: 【controlled mode】 /【 free mode 】/【 forbidden mode】 (The entry and exit can be set independently)
Self-check function when power on The system will self-check routinely when the power is on, and intelligently detect the key hardware and function.
▌Security Design:
Open gate when the power is failure
Anti-clamping function
Anti-collision function
Emergency escape operation
▌Model Applications:
Government agencies, Club & Century, Office building, Financing institution, etc.
