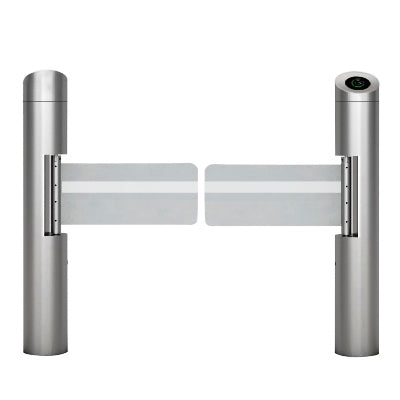

TPW-321ASP: Swing Gate Turnstile

  • $4,500.00

Data Sheet



Troubleshooting Manual

Product Descripton:

  • The Swing Gate pursues a combination of artistic and modern elements, and it is very ideal for elegant location.
  • The Swing Gate has a wide passage width to accommodate pedestrians, users with luggage or packages, and bicycles.
  • The Swing Gate integrates machinery, electronics, microprocessor control and a variety of identification technologies, conveniently compatible with access control systems, bar code cards and biometric equipment.
  • The Swing Gate provides a high level of security and high capacity by adopting reliable security protection devices, alarm devices, direction indicators etc.


Basic Function:

Passing mode : 【controlled mode】 /【 free mode 】/【 forbidden mode】 (The entry and exit can be set independently)

Self-check function when power on : The system will self-check routinely when the power is on, and intelligently detect the key hardware and function.

Automatic reset function : The swing gate will return to the hindered zero position automatically when the passing is finished, stable and no shaking.

Self-recovery function : The swing gates do not return to the hindered zero position because of something abnormal. And the swing gate will automatically recover to the hindered zero position when it is over the set time.

Open gate when the power is failure : Adopt the leading mechanical structure created by CMOLO; the system will unlock the gate automatically when power is off; manually push the gate to be open and convenient to evacuate people, which meets the fire requirement.

Anti-collision function : When the gate is locked, it can support the impulse force within the safety range. The gate can be manually pushed slowly when it is over the safety range, to protect the mechanism and pedestrian, and then recovers automatically.

Mechanical anti-pinch : The swing gate will immediately and reversely bounce off when the swing gate encounter obstacles; the impulse force is within the safety range when the swing gate is moving.


▌Product Parameters:

Driving motor DC brushless motor
Operation temperature ﹣20℃~60℃
Housing material  304 grade stainless steel
Surface treatment Brushed finish
Swing gate material  Organic glass
Normal passing 30 ~ 45 people / min(according to the condition of pedestrians)
Evacuate passing 60 people/min(according to the condition of pedestrians)
Operation voltage DC 24V
Rated power 35W
Power supply AC100-240V,50/60Hz
Control input/output 6 channels relay control output/ 4-channel dry contact signal input
Communication interface RS485 / RS232;TCP/IP interface(customizable)
Lane Width: 550 Mm
Dimension Figure:  1200×Φ168(mm)


Typical Applications:

office buildings , government agencies , schools , supermarkets , etc.
