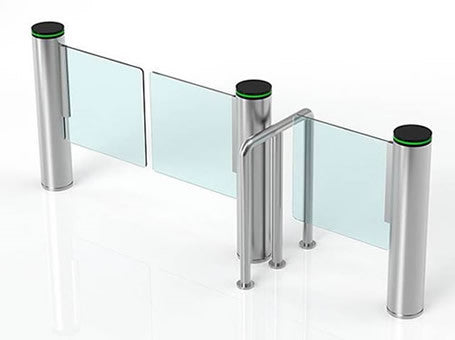

TRS-816 Servo Motor Swing Barrier

TRS-816 Servo Motor Swing Barrier

  • $5,000.00


 Price per Unit

| Data Sheet |

The TRS-816 is integrated with delicate mechanical transmission, microprocessor control, and various read/write techniques. It can be used for intelligent control and management of the passage after equipped with different read/write devices.

The outline of the product is formed after pressing the stainless steel plate. The shape is featured as pleasing appearance, good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for diverting passengers.



Main Technical Specifications

Material: SS304, thickness is no less than 1.5mm

Manufacturing Technique: CNC laser cutting

Barrier Material: Acrylic glass, SS304 and so on

Gate Opening and Closing time: ≤ 0.4S

Passing Speed: Normally open-50persons/min; Normally closed-50persons/min

Communication Connection: RS485 Communication

Power: AC220C±10V,50HZ

Motor: DC Brushless Motor, 140W/24V

Communication Distance: ≤1200M

Input Connection: +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma

Infrared Sensors: 9 or 10 Pairs

Relative Humidity: <95%, No Densation

Operating Temperature: -15°C-60°C

Working environment: indoor and outdoor(added the rainshed)

Colour: SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Colour you like

Protection Grade:IP54
