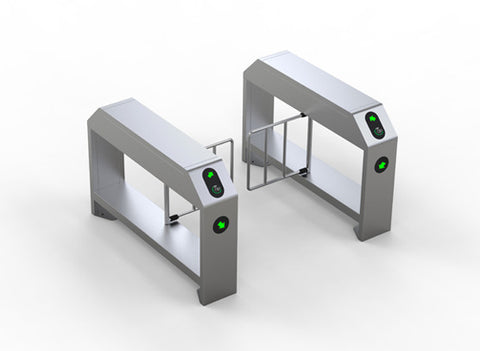

IPW-PM1000: Outdoor Swing Gate Turnstile

Basic Function:

• Anti-collision function :  When the gate is locked, it can support the impulse force within the safety range. The gate can be manually pushed slowly when it is over the safety range, to protect the mechanism and pedestrian, and then recovers automatically.

• Open gate when the power is failure :  Adopt the leading mechanical structureby original creation; the system will unlock the gate automatically when power is off; manually push the gate to be open and convenient to evacuate people, which meets the fire requirement.

• Emergency escape function :  Equipped with emergency escape control device, the system can automatically open the gate, easy for evacuation.

• Anti-clamping function :

(1) Anti-pinch by infrared sensor :  Install multi-pair of infrared sensors near the anti-pinch area where swing gate is moving. Once people or thing is detected within the anti-pinch area, the swing gate will automatically stop moving; until the people or thing leaves the anti-pinch area, the swing gate will continue to move.

(2) Mechanical anti-pinch :  The swing gate will automatically stop moving when the swing gate encounter obstacles; the impulse force is within the safety range when the swing gate is moving.

• Passing indication function :

(1) Direction indicator :  The direction indicator is installed on the top of the housing to indicate the legal passing direction.

(2) Passing status indicator :  It is installed inside the housing, indicating whether the swing gates can open after receiving the valid signal.

Product Parameters:

 Applications:

Bus Station, Stadium
