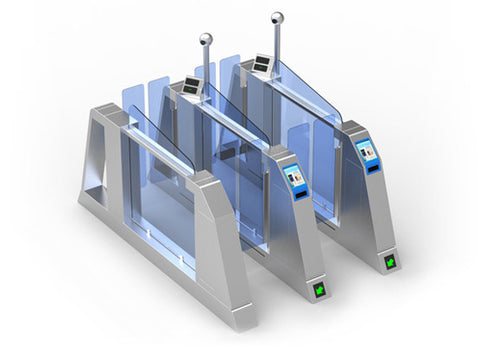

IPW-EG1000: Customs E-gate
This security turnstile is safty, steady, beautiful.
All the internal parts are with antirust and antiseptic treatment, therefore, the turnstile is durable.
Provide the control software for human-machine interface and SDK protocol freely. It can achieve batch control and debugging function conveniently and the expansibility is very strong.
The widen lane is optional for carrying luggage, handcart and wheelchair access.
Applicable to the airport, customs and other entry and exit of indoor Spaces.
Safety Double Direction Security Turnstiles , Automatic Systems Turnstiles
▌Product Parameter:
| Normal passing | 30 ~ 45 people / min(according to the condition of pedestrians) |
| Evacuate passing | 60 people/min(according to the condition of pedestrians) |
| Opening speed of swing gate | 0.3-0.6s |
| Housing material | 304 grade stainless steel |
| Surface treatment | Brushed finish |
| Swing gate material | Organic glass |
| Method of position | Use the encoder to make sure the swing gate position |
| Method of motor control | Using high-performance DSP chip |
| Power supply | AC100-240V,50/60Hz |
| Rated power | 100W |
| Operation voltage | DC 24V |
| Control input/output | 6 channels relay control output/ 4-channel dry contact signal input |
| Driving motor | DC brushless motor |
| Swing Gate Material: | Organic Glass | Housing Material: | 304 Grade Stainless Steel |
|---|---|---|---|
| Surface Treatment: | Brushed Finish | Driving Motor: | Encoder |
| Method Of Motor Control: | DSP Chip |
▌Basic Function:
Unique dynamic monitoring function
Batch setting and debug function : The turnstile can be batch set and debugged by the software. It will greatly improve the working efficiency and reduce the maintenance cost.
Compatibility : Equipped with the dry contact signal input interface,Compatible with all kinds of access controllers.
Passing indication function
Anti-clamping function :
(1) Anti-pinch by infrared sensor : Install multi-pair of infrared sensors near the anti-pinch area where swing gate is moving. Once people or thing is detected within the anti-pinch area, the swing gate will automatically stop moving; until the people or thing leaves the anti-pinch area, the swing gate will con-tinue to move.
(2) Mechanical anti-pinch: The swing gate will automatically stop moving when the swing gate encounter obstacles; the impulse force is within the safety range when the swing gate is moving.
Passing mode : 【controlled mode】/【 free mode 】/【 forbidden mode】 (The entry and exit can be set independently)
▌Custom-made Feature:
Passing indication function :
Integrate with Access Control System
Integrate with the built-in reader provided by customers
Customize the installation bracket for reader
Design the specialized access control systems according to the requirement of customers
Integrate with Visiting Management System:
Integrate with visiting management system provided by customers
Design the specialized visiting management system according to the requirement of customers
