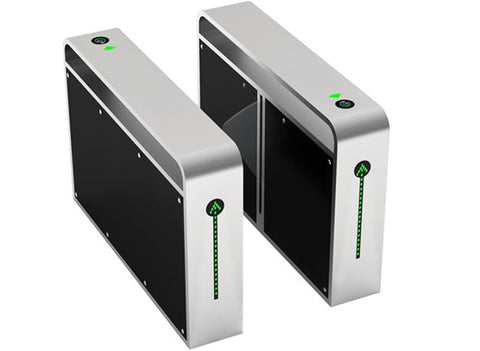

TPW-800EHS01: Wing Gate Turnstile

TPW-800EHS01: Wing Gate Turnstile

▌All-around Personal Safety Protection

The flap barrier gate opens automatically to evacuate people in the event of an emergency, such as fire, power failure, etc.
Infrared and mechanical anti-clamping functions provide double protection.
The gate can be pushed slowly when a sudden impact force is applied beyond the safety range so as to protect the
machine and the pedestrian effectively.
All electric modules are designed to operate under the safety voltage of 24V, and configured with residual current
protective device to effectively avoid electric shocks.

▌Intelligent & Advanced Passageway Security Concept

The matrix type photoelectric stereoscopic detection technology is adopted to sensitively detect the behaviors
that threaten the passageway safety, such as illegal intrusion, reverse passing, tail-gating, and give out alarms
through sound, light, etc. The turnstile can be also linked with other security systems.

▌Strong & Stable Control Core

High-quality DC brushless motor is configured and advanced servo control system is carried to truly achieve precise
control, stable performance and maintenance-free.
Lossless mechanism structure based on German technology is adopted to ensure long lifespan.



▌Technical Parameter:

Driving Motor DC brushless motor
Lane Width 550 mm
Rated Power 100W
Housing Dimension

1600×300×1000mm
Working Environment Interior Places
Housing Material

304 grade stainless steel
Power and Voltage 100-240VAC, 50/60HZ
Communication Interface RS485 / RS232 (default); TCP/IP (optional)
Machinery Mechanism MTHTTM Lossless mechanism
Passing Speed 30 ~ 45 people/min (depending on the passing situation)
Evacuation Passage Speed 60 people / min (depending on the passing situation)
Control Input / Output 8 channels dry contact signal input / 12 channels relay control output
Humidity Temperature 0~95% (non-condensation)
Operation Voltage DC 24V





▌ Custom-made Feature:



  • Lane width



  • The lane width can be custom-made as larger size, andthe maximum can be 900mm, but the length might need to be changed accordingly.


  • Materials



  • The material of housing can be 316 grade stainless steel,andthe thickness of stainless steel can be customized.



  • The material of swing gate can be organic glass, tempered glass, polycarbonate board and so on, and the color can be customized.


  • Customized Functions



  • Built-in or external counter



  • TCP / IP communication





  • Door open button



  • External door open button.



  • Install the door open button with wireless remote control.


  • System Integration



  • Integrate with access control system and built-in reader provided by customers.



  • Integrate with visitor access control system.



  • Integrate with ticketing system.



▌Application:


■ Schools

■ Government building

■ Hotels

■ Clubs

■ Business building
