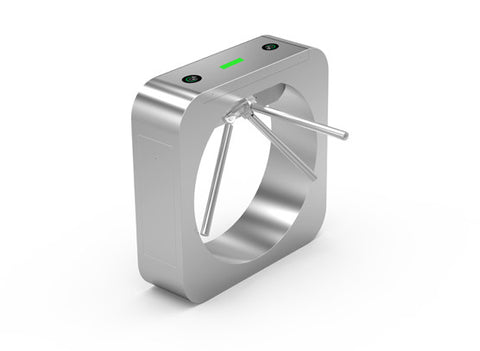

CPW-451AS: Semi-automatic - Bridge-type Tripod Turnstile
▌Feature:
Very efficiently ensure only one person to pass at one time with high safety and reliability;
Housing made of stainless steel and durable;
Strong waterproof and dustproof, and very strong environmental suitability, which is suitable for both indoors and outdoors;
With dry contact signal input interface, RS485 / RS232 interface, TCP / IP interface (optional), which can compatible with various access controller;
Without motor, user needs to manually lift the arms when power is on; and after receiving valid opening signal, user needs to manually push the arms to pass.
| Arm Diameter: | 38mm | Surface Treatment: | Brushed Finish |
|---|---|---|---|
| Casing Size: | 1000×280×990mm | Pedestrian Transit Speed: | 20 ~ 35 People/min (depending On The Passing Situation) |
| Casing Material: | # 304 Grade Stainless Steel | Working Environment: | Indoors / Outdoors |
▌Technical Parameter:
| Humidity Temperature | 0~95% (non-condensation) |
| Control Input / Output | 8 channels dry contact signal input / 6 channels relay control output |
| Communication Interface | RS485 / RS232 (default); TCP/IP (customized) |
| Rated Power | 50 W |
| Evacuation Passage Speed | 60 people / min (depending on the passing situation) |
| Operation Temperature | -20℃~60℃ |
| Arm Material | 304 grade stainless steel |
| Power and Voltage | 100-240VAC, 50/60HZ |
▌Basic Function:
Anti-intrusion function: Under the controlled mode, pedestrian forcibly push the arms while the turnstile has not received valid passing signal or is prohibited passing, which is regarded to be illegal intrusion. At that time, the turnstile will be locked to avoid pedestrian to pass.
Memory function of passing requests: When more than 2 passing signals are given at the same time (including the same direction and opposite direction), the system will remember all the passing requests and finish them one by one. The number can be up to 255.
Passing mode switching function:The entry and exit can be set independently 【 forbidden mode】 /【 free mode 】/ 【controlled mode】
Compatibility: Equipped with the dry contact signal input interface, RS485/RS232 interface, TCP/IP interface (optional), compatible with all kinds of access controllers.
Passing indication function: installed at the top cover of the housing, indicating the valid passing direction of the turnstile.
Automatic reset function: The turnstile will open after receiving the valid opening signal when standby. The arms will return to the hindered zero position automatically under the following situation:
1) Pedestrian finishes passing;
2) Exceed allowed passing limit time.
Anti-reverse-intrusion function: When the turnstile receives valid opening signal at one direction, the pedestrian goes into the turnstile and push the arms at opposite direction within the allowed time, which is regarded to be reverse-intrusion. The turnstile will lock at the opposite direction to avoid pedestrian to pass.
Self-recovery function: The arms do not return to the hindered zero position because of human intervention. After revoking human intervention, the arms automatically return to the hindered zero position.
▌Application:
Museum
Metro
Library
Commercial building
Tourist attraction
Residence community etc.
