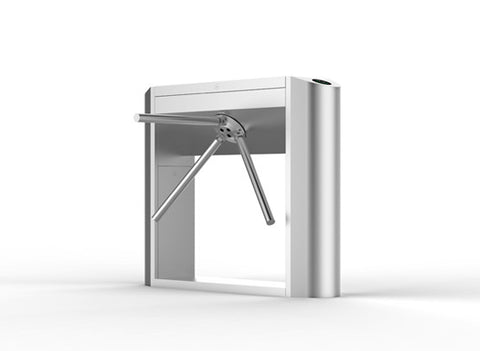

CPW-400DM: Mechanical - Bridge-type Tripod Turnstile

CPW-400DM: Mechanical - Bridge-type Tripod Turnstile

  • $4,500.00


CPW-400DM is manual type tripod turnstile without any electric device. User needs to manually push arm to pass. Its waterproof and dustproof are strong so it is suitable for both indoors and outdoors. It can efficiently ensure only one person to pass at one time with high safety and reliability;

▌Detailed Product Description:

Surface Treatment: Brushed Finish

Casing Size: 1200×280×990mm

Arm Diameter: 38mm Pedestrian Transit Speed: 20 ~ 35 People/min (depending On The Passing Situation)

Evacuation Passage Speed: 60 People / Min (depending On The Passing Situation)

Operation Temperature: -20℃~60℃

▌Basic Function:

Passing mode: 【free mode】

Without electric devices, and need no power supply, pure machine design, users need to manual push the arm to pass through.

Automatic reset function: The arms will return to the hindered zero position automatically when the passing is finished, stable and no shaking.

Passing mode: Single directions free pass, the other direction forbid to pass. (The pass direction can be set, it normally use to the simple entry or exit.)

▌Technical Parameter:

Humidity Temperature 0~95% (non-condensation)
Casing Material # 304 Grade Stainless Steel
Working Environment Indoors / Outdoors
Arm Material 304 grade stainless steel



▌Customization Service:

Material:
Housing materical can be customized to be 316 grade stainless steel
Housing thickness can be customized


Function Customization:
passing indicator can be customized



▌Application:

Library
Museum
Residence community
Tourist attraction
Commercial building
Metro etc.
