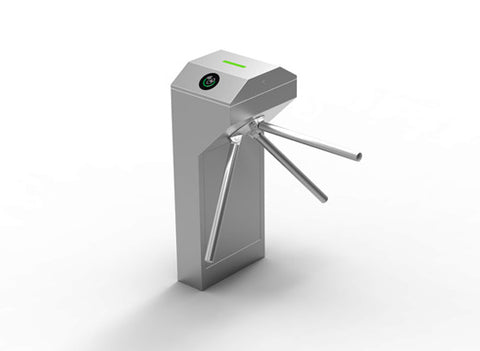

CPW-312BS: Semi-automatic - Vertical Tripod Turnstile

  • $2,600.00


▌Features:

■ Provide the control software for human-machine interface and SDK protocol freely. It can achieve batch control and debugging function conveniently and the expansibility is very strong.

■ Fine workmanship and manufacturing, strong anti damaging, and it is widely suita-ble for all kinds of occasions.

■ The housing is made of high quality stainless steel, and all the internal parts are with antirust and antiseptic treatment, therefore, the turnstile is durable. The whole machine works stably, with low power consumption, energy conservation and envi-ronment protection.

▌Product Parameter:

Normal passing: 20 ~ 35 people / min(according to the condition of pedestrians)

Evacuate passing: 60 people/min(according to the condition of pedestrians)

Housing material: 304 grade stainless steel

Surface treatment: Brushed finish

Arms material: 304 grade stainless steel

Control input/output: 6 channels relay control output/ 8-channel dry contact signal input

Communication interface: RS485 / RS232;TCP/IP interface(customizable)

Operation temperature: ﹣20℃~60℃

Working environment: Indoors & Oudoors


▌Basic Function:


■ Passing mode: 【controlled mode】/【free mode】/【forbidden mode】(The entry and exit can be set independently)

■Emergency-escape function: With the Emergency-escape controller, the systems will drop down the arms automatically, and it is convenient to evacuate the people.

■ Auto-drop-arm function: The arm will drop automatically when power off (default), and free pass mode without dropping arm is optional.

■ Anti-bump function: Can bear a safety margin impulse force when the arms are locked, overtop the safety scale, the arms can push forward slowly, to protect the mechanism and pedestrian.

■ Batch setting and debug function: The turnstile can be batch set and debugged by the software. It will greatly improve the working efficiency and reduce the maintenance cost.

■ Auto-drop-arm function: Use the advanced mechanical structure create by CMOLO, the arm can drop down automatically when power off (default), or free pass-ing mode without dropping arm when the power off, it’s convenient to make evacua-tion and accord with the fire-fighting requirement.

■ Automatic reset function: The arms will return to the hindered zero position automatically when the passing is finished.

■ Compatibility: Equipped with the dry contact signal input interface,


▌Applications:

factory
park
exhibition building
playground
gymnasium
natatorium
prison
etc.
