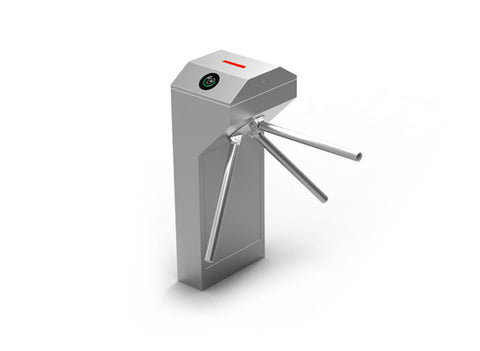

CPW-312BF: Fully Automatic - Vertical Tripod Turnstile

  • $3,200.00


Features:

■ Provide the control software for human-machine interface and SDK protocol freely. It can achieve batch control and debugging function conveniently and the expansibility is very strong

■ With the personalized installation interface (such as card reader, indicator light installation and so on), so it’s convenient to operate.

■ Tripod turnstile, the side is without baffle, sturdy and durable with elegant ap-pearance.


▌Basic Function:

■ Automatic reset function: The arms will return to the hindered zero position automatically when the passing is finished, stable and no shaking.

■ Self-recovery function: The arms do not return to the hindered zero position because of something abnormal. And the arms will automatically recover to the hindered zero position when it is over the set time.

■ Auto-drop-arm function: Use the advanced mechanical structure create by CMOLO, the arm can drop down automatically when power off (default), or free pass-ing mode without dropping arm when the power off, it’s convenient to make evacua-tion and accord with the fire-fighting requirement.

■ Anti-bump function: Can bear a safety margin impulse force when the arms are locked, overtop the safety scale, the arms can push forward slowly, to protect the mechanism and pedestrian.

■Emergency-escape function: With the Emergency-escape controller, the systems will drop down the arms automatically, and it is convenient to evacuate the people.

■ Auto-lift-arm function: After the arm dropping down automatically when the power is off, the middle arm can also lift automatically with alert when the power is on again.

■ Automatic-rotation function: Once an open signal is given, the arms will rotate automatically to a degree to indicate the pedestrian to pass. The arms will rotate automatically with the pedestrian after pushing forward the arms.



▌Product Parameter:


Housing Dimension: 420×330×990(mm)

The length of arm: 510(mm)

Operation temperature: ﹣20℃~60℃

Working environment: Indoors & Oudoors

Housing material: 304 grade stainless steel

Surface treatment: Brushed finish

Arms materia: 304 grade stainless steel

Method of position: Use the encoder to make sure the swing gate position

Method of motor control: Using high-performance DSP chip

Control input/output: 6 channels relay control output/ 8-channel dry contact signal input

Communication interface: RS485 / RS232;TCP/IP interface(customizable)
