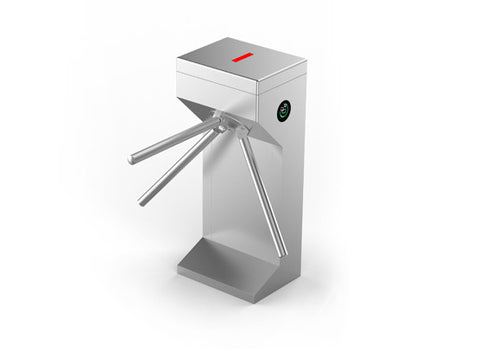

CPW-312AS: Semi-automatic - Vertical Tripod Turnstile

  • $1,680.00


Features:

■ With the personalized installation interface (such as card reader, indicator light installation and so on), so it’s convenient to operate.

■ Bi-direction passing;manually lift arms and manuallyrotate the arms.

■ At the low temperature environment, it can be installed the constant temperature system into the turnstile according to the requirement of customer.

■ Vertical tripod turnstile, the side is without baffle, sturdy and durable with elegant appearance.



▌Basic Function:

■ Without motor. After the legal signal is given, we need to push the arm to pass through; the arms dropping down when the power is off, we need to manually lift arms when the power is on again.

■ Auto-drop-arm function: Use the advanced mechanical structure create by CMOLO, the arm can drop down automatically when power off (default), or free pass-ing mode without dropping arm when the power off, it’s convenient to make evacua-tion and accord with the fire-fighting requirement.

■ Self-recovery function: The arms do not return to the hindered zero position because of something abnormal. And the arms will automatically recover to the hindered zero position when it is over the set time.

■ Anti-bump function: Can bear a safety margin impulse force when the arms are locked, overtop the safety scale, the arms can push forward slowly, to protect the mechanism and pedestrian.

■Emergency-escape function: With the Emergency-escape controller, the systems will drop down the arms automatically, and it is convenient to evacuate the people.

■ Unique dynamic monitoring function



▌Product Parameter:

Housing Dimension 420×330×990(mm)
The length of arm 510(mm)
Housing material 304 grade stainless steel
Surface treatment Brushed finish
Arms material 304 grade stainless steel
Normal passing 25 ~ 35 people / min(according to the condition of pedestrians)
Evacuate passing 60 people/min(according to the condition of pedestrians)
Control input/output 6 channels relay control output/ 8-channel dry contact signal input
Communication interface RS485 / RS232;TCP/IP interface(customizable)



▌Application:

park, playground , gymnasium , natatorium , exhibition building , factory, etc.
